In July 2020 Mid Hants Sand & Aggregates general manager Richard Chewter contacted MEP to see if we could resolve the ongoing problem of sand losses to the lagoon at their Fawley Quarry.
The plant at Fawley quarry processes two very different materials, sea dredged aggregates (BAD), which as a result of the process to win the aggregates is deficient in both fines and silts the other feed stock is the indigenous sand which is extremely fine.
Demo Video
The existing plant is a modular design that produces two sand products, it had at a later date been modified to include a fines recovery unit. When processing sea dredged BAD the main plant recovered the majority of the sand and the additional fines plant recovered very little. When processing the Fawley sand the fines plant was unable to accommodate ore recover all of the fine sand.
MEPs approach is always to look at every process and consider the options, modify or replace the existing plant, in this case only the stacking conveyor would be re-used. Having considered where the new equipment would be positioned physically and, in the flowsheet, it was quickly determined it would occupy the same location.

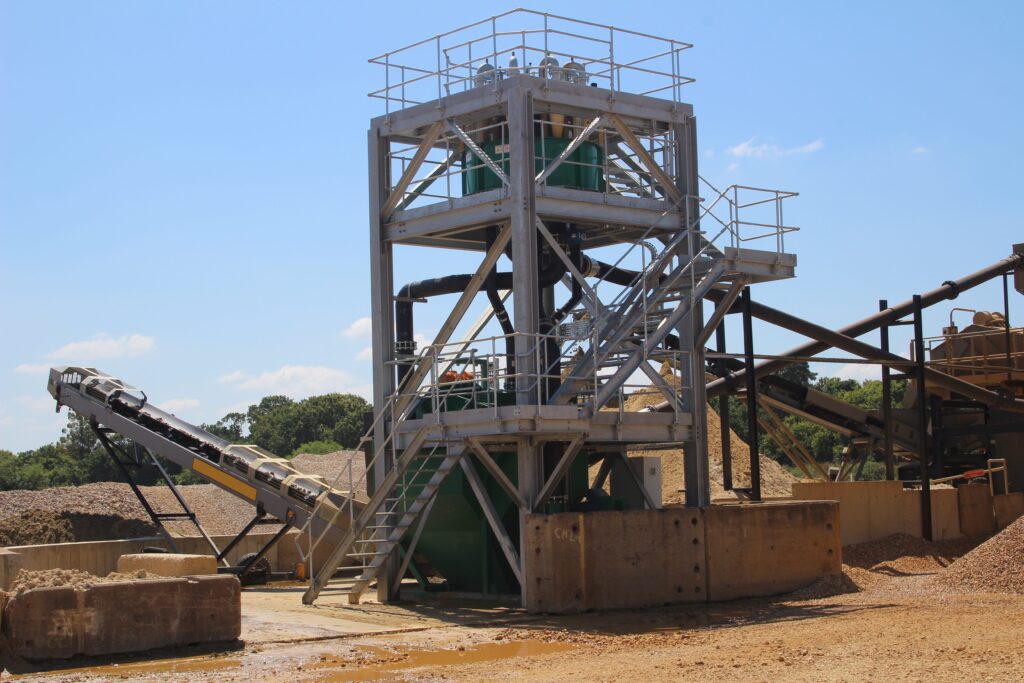

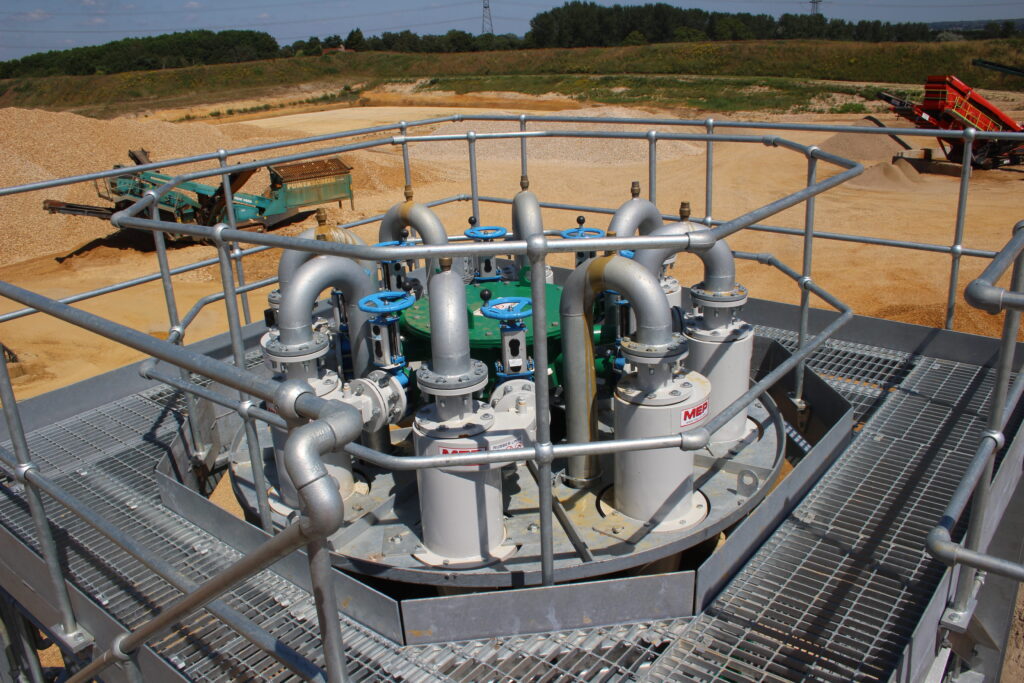

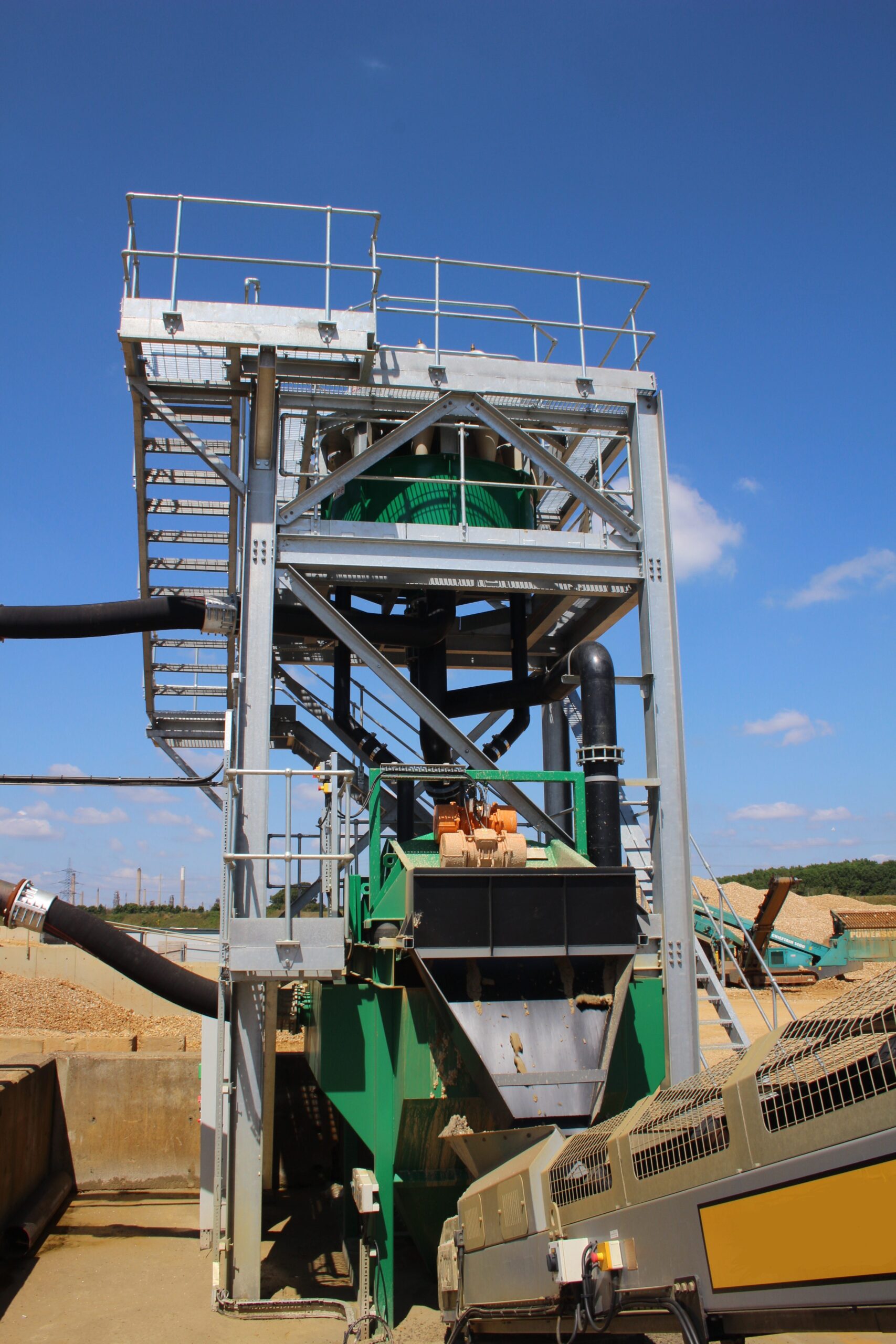

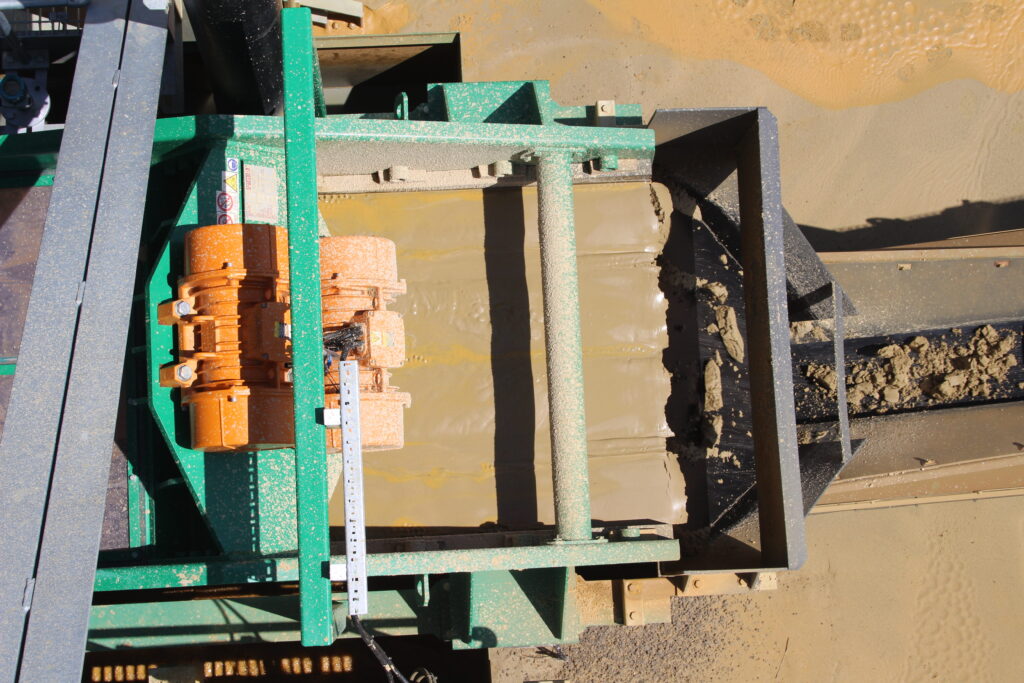

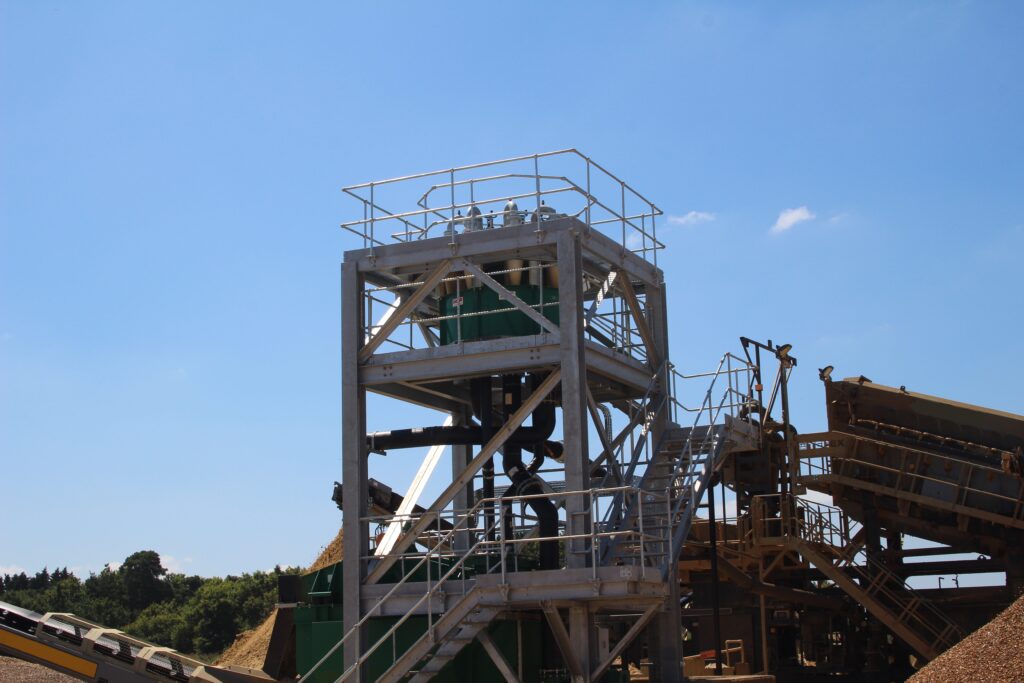

A bespoke 50 t/h MEP fines recovery plant comprising a sand sump, 8 x 250R Radial Cyclone Manifold, De-Watering Screen with Water Control Box and control system was ordered, delivered and installed on time with no accidents.
Richard Chewter of Mid Hants commented “The team at MEP were familiar with the problems we were encountering and following numerous technical and commercial discussions we placed an order with them. The plant design incorporates all our requirements for safe operation and maintenance”. Since installing it we have maximised production of bedding sand and significantly reduced losses to the lagoon.”
Steve Slingo sales manager commented “The new plant was designed to achieve maximum solids recovery from both feed types and that has exceeded the customers’ expectations, the new plants d50 is 36 microns! Mid Hants have recommended the MEP system to other sites who we are now working with to provide the same results.
MEPs unique service is based around an unrivalled expertise of over 35 years, giving each and every customer a bespoke designed solution to solve this problem.
