MEP are the UK agent to supply the Pozzato range of Log Washers, Screens and Crushers.
The range of Pozzato machines include vibrating dry screens and vibrating rinsing screens. Inclined vibrating screens are equipped with two, three or four decks, starting with the smallest screening area of 1.6m² per deck to the biggest screening area of 14m² per deck.
Vibrating Screens for Sand and Gravel
The shell of the Pozzato vibrating screens is made of thick steel plates; at the top and bottom ends there are properly dimensioned angle profiles that are bolted in order to improve the frame stiffness. Each vibrating screen is equipped with an extra reinforcement welded in the central area of the side plates, on which the bearing housings are bolted, in order to distribute vibration stress on the widest possible surface. These features and the use of oversize bearings and housings guarantee the highest screening efficiency and the maximum operation life.
Pozzato use easily adjustable counterweights in order to optimise the vibration amplitude in accordance with the feeding material size, with the kind of the panels fitted on the machine and with the aperture. The shaft speed can be adjusted by replacing the driving pulley.
Pozzato screens can be fitted with cross or end tensioned traditional wire meshes. The decks are made by heavy cross members individually bolted to the side plates of the machine.
Our vibrating screens can also be equipped with rubber or PU panels and, upon specific request, with specially designed decks for every kind of PU modular mats.
We pay specific attention to the feed chutes and collecting sumps for dry sand or the slurry in order to prevent any blockages or premature wear.

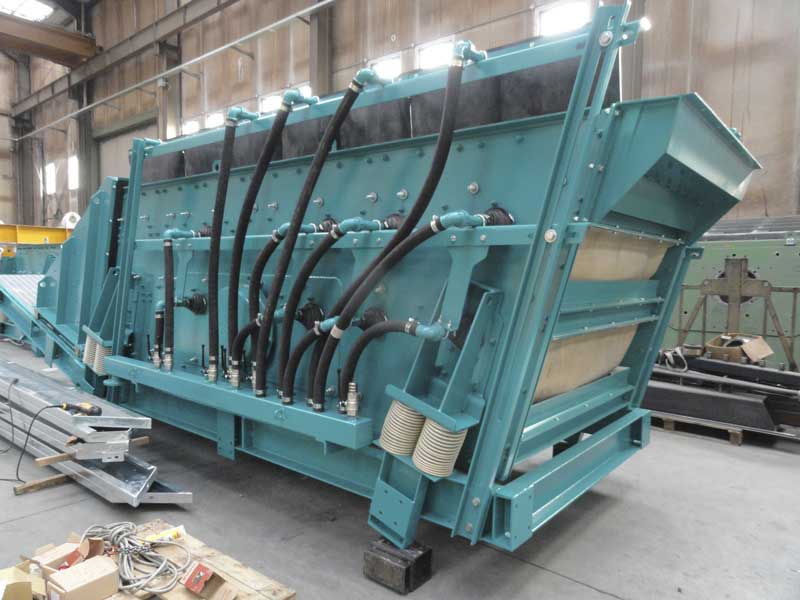

Vibrating Rinsing Screens
In order to optimise our vibrating rinsing screens, Pozzato have designed a special system equipped with:
• Staggered PU nozzles.
• Extensions to place them closer to the screen decks.
• Apposite components which allow you to change the angle of the nozzles very easily.
• Control valves to adjust the volume of water on each pipe.
Two rubber grommets on each spray bar and a special rubber skirting onto the top deck are fitted to rinsing screens to avoid any spillage of slurry.
Pozzato SG Model
The Pozzato vibrating screen range also includes the “SG” model, a vibrating grizzly screen for primary screening. This kind of heavy screen is equipped with adequately dimensioned side walls with Hardox lining; the top deck is bolted to the screen shell and is made of anti-wear steel bars.
Technical Specifications
| Model | Screen Decks | Screening Surface (m2) | Weight(kg) | Power (kW) |
| 2M16 | 2 | 1.6 x 2 | 850 | 4 |
| 2M25 | 2 | 2.5 x 2 | 1,200 | 5.5 |
| 2M36 | 2 | 3.6 x 2 | 1,860 | 7.5 |
| 2M48 | 2 | 4.8 x 2 | 2,400 | 7.5 |
| 2M60 | 2 | 6.0 x 2 | 2,600 | 7.5 |
| 2M75 | 2 | 7.5 x 2 | 3,500 | 11 |
| 2M90 | 2 | 9.0 x 2 | 4,900 | 15 |
| 2M108 | 2 | 10.8 x 2 | 5,800 | 18.5 |
| 2M120 | 2 | 12 x 2 | 6,900 | 22 |
| 2M140 | 2 | 14 x 2 | 7,800 | 22 |
| 3M16 | 3 | 1.6 x 3 | 980 | 4 |
| 3M25 | 3 | 2.5 x 3 | 1,600 | 5.5 |
| 3M36 | 3 | 3.6 x 3 | 2,260 | 7.5 |
| 3M48 | 3 | 4.8 x 3 | 2,800 | 7.5 |
| 3M60 | 3 | 6.0 x 3 | 3,000 | 7.5 |
| 3M75 | 3 | 7.5 x 3 | 5,000 | 15 |
| 3M90 | 3 | 9.0 x 3 | 5,900 | 15 |
| 3M108 | 3 | 10.8 x 3 | 6,800 | 18.5 |
| 3M120 | 3 | 12 x 3 | 7,900 | 22 |
| 3M140 | 3 | 14 x 3 | 8,800 | 22 |
| 4M16 | 4 | 1.6 x 4 | 1,140 | 4 |
| 4M25 | 4 | 2.5 x 4 | 2,040 | 5.5 |
| 4M36 | 4 | 3.6 x 4 | 2,600 | 7.5 |
| 4M48 | 4 | 4.8 x 4 | 3,300 | 11 |
| 4M60 | 4 | 6.0 x 4 | 3,500 | 11 |
| 4M75 | 4 | 7.5 x 4 | 5,500 | 15 |
| 4M90 | 4 | 9.0 x 4 | 6,600 | 15 |
| 4M108 | 4 | 10.8 x 4 | 7,500 | 18.5 |
| 4M120 | 4 | 12 x 4 | 8,600 | 22 |
| 4M140 | 4 | 14 x 4 | 9,500 | 22 |
